| ชื่อแบรนด์: | RUYA |
| เลขรุ่น: | 2DT600GZ |
| MOQ: | 1 ชุด |
| ราคา: | โปร่ง |
| ระยะเวลาการจัดส่ง: | 3-4 เดือน |
| เงื่อนไขการจ่ายเงิน: | T/T |

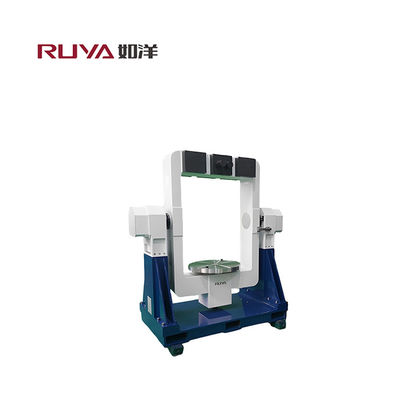

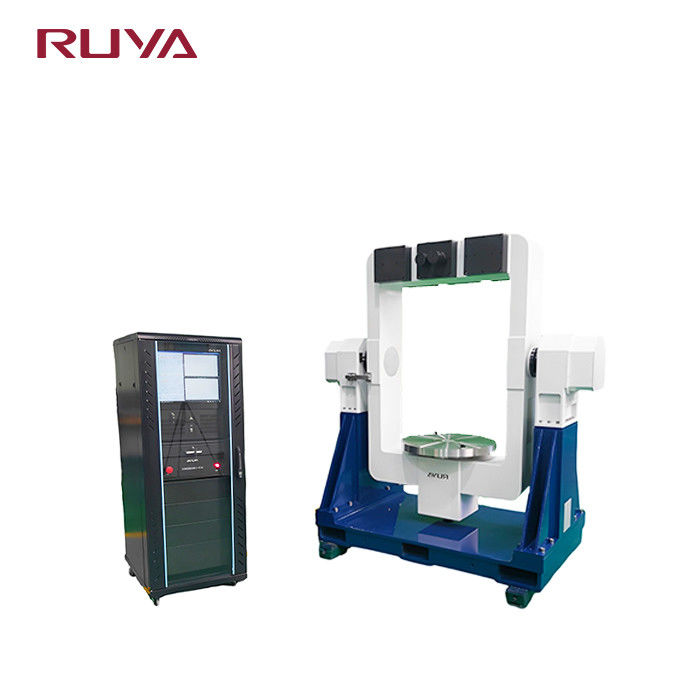

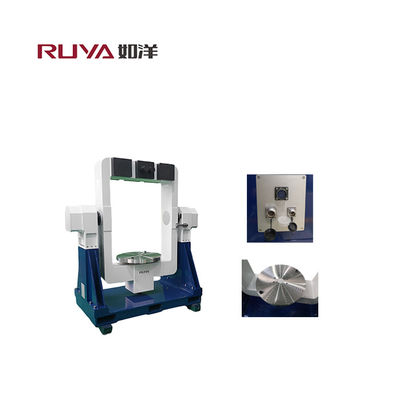

2DT600GZ Dual-axis Tracking Inertial Navigation Test Turntable
Product Description
The dual-axis tracking turntable has two degrees of freedom of movement in the azimuth axis (X) and pitch axis (Y). It is a tabletop two-dimensional precision testing equipment. It is mainly used for testing the position, speed swing, tracking and other functions of precision components and components.
Product Parameters
|
Specification |
||
|
1 |
Load Weight |
50Kg |
|
2 |

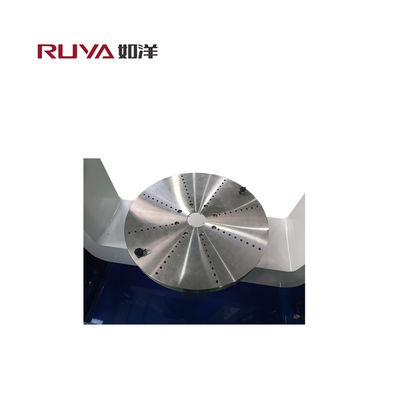

Table Diameter |
Ф600mm |
|
3 |
Table Flatness |
0.02mm |
|
4 |
Table Runout |
0.02mm |
|
5 |
Rotary Accuracy Of Dual-Axis |
±3″ |
|
6 |
Perpendicularity Of Dual-Axis |
±3″ |
|
7 |
Intersection Of Dual-Axis |
Ф0.5mm diameter ball |
|
8
|
Positioning Error Of Angular Position
|
outer frame:±3″； |
|
inner frame:±2″； |
||
|
9 |
Positioning Repeatability Of Angular Position |
±2″ |
|
10
|
Rate Range
|
inner frame:0.001°/s~15°/s； |
|
outer frame:0.001°/s~15°/s； |
||
|
11
|
Angle Rotary Range
|
outer frame: ±90° |
|
inner frame: ±170° |
||
|
12
|
Rate Accuracy
|
ω≤1°/s , 2×10-3 (1° average) |
|
1°/s≤ω<10°/s , 2×10-4 (10° average) |
||
|
ω≥10°/s , 2×10-5 (360° average) |
||
|
13
|
Maximum Angular Acceleration
|
inner frame:≥30°/s²； |
|
outer frame:≥30°/s² |
||
วิดีโอ
|
