| ชื่อแบรนด์: | RUYA |
| MOQ: | 1 ชุด |
| ราคา: | โปร่ง |
| ระยะเวลาการจัดส่ง: | 3 เดือน |
| เงื่อนไขการจ่ายเงิน: | ที/ที |

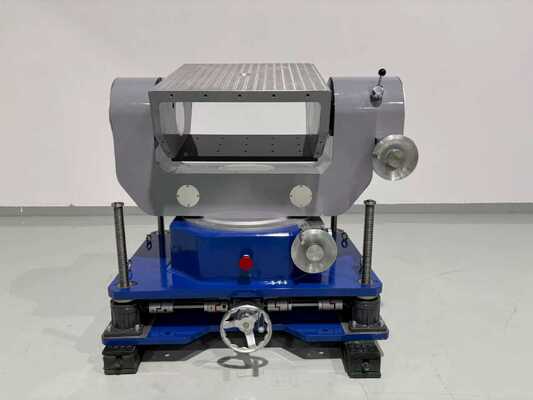

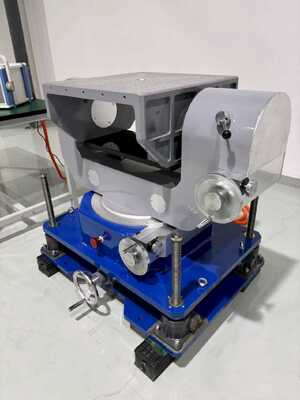

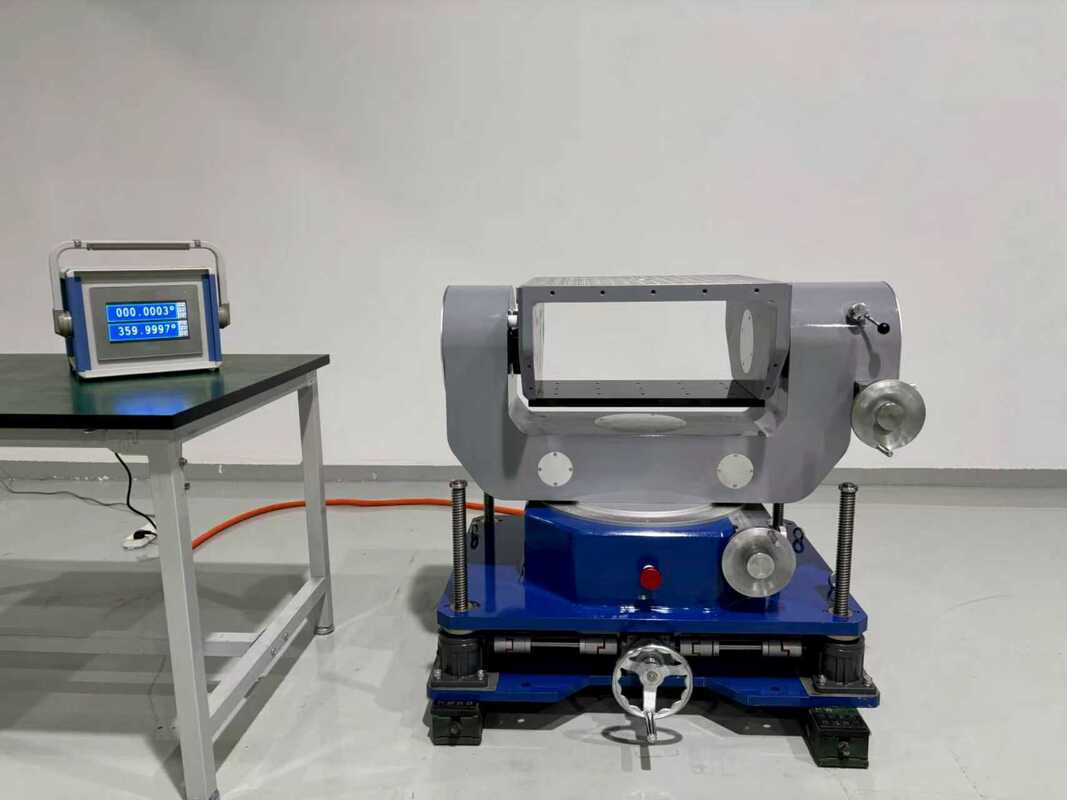

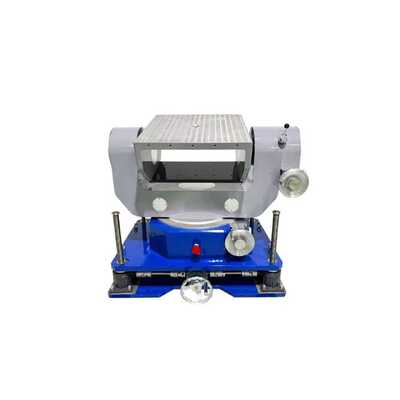

Dual-axis Manual Turntable Static Attitude Simulation Inertial Calibration Device
Product Description
The dual-axis manual turntable is mainly used for static attitude simulation, testing and calibration of inertial devices and components.
Product Parameters
|
Specification |
||
|
1 |
Load Weight |
50Kg |
|
2 |
Table Size |
550mm×550mm |
|
3 |
Table Flatness |
0.02mm |
|
5 |
Rotary Accuracy Of Dual-Axis |
±2″ |
|
6 |
Perpendicularity Of Dual-Axis |
±3″ |
|
7 |
Intersection Of Dual-Axis |
Ф0.5mm diameter ball |
|
8
|
Positioning Error Of Angular Position
|
outer frame:±2″； |
|
inner frame:±2″； |
||
|
9 |
Positioning Repeatability Of Angular Position |
±1.5″ |
|
10
|
Angle Rotary Range
|
Azimuth:360° continuous rotation |
|
Pitch:±45° |
||
|
11
|
Display Mode
|
Degree:0.0000-359.9999° |
|
Degrees, minutes and seconds:0°0′0″-359°59′59″ |
||
|
Radian:0.0000-6.2832 |
||
|
12 |
Display Resolution |
0.0001° |
|
13 |
Lift Range |
900+250mm |
Our customers
